FRONT IMPLEMENTS
Synchrolab
Perfect tillage in a single pass! Clod-breaking and levelling thanks to SYNCHROSPIRE used as a front-mounted combination.

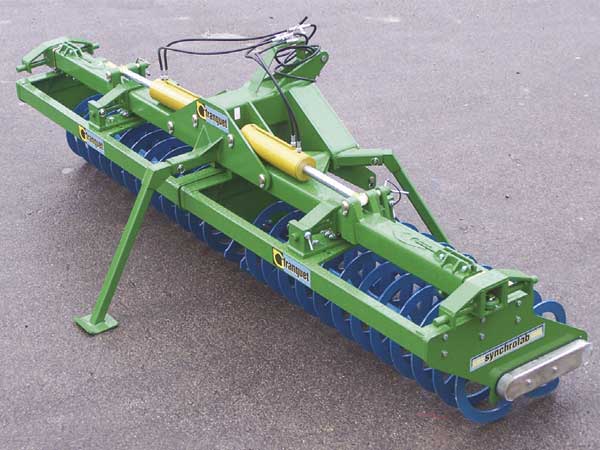

The SYNCHROLAB, based on the SYNCHROSPIRE system, is an ingenious implement which combines agronomic, technical and economic advantages.
Designed for two kinds of work, it can firstly be used as a front mounted combination for soil preparation (closely-spaced spires). Its benefit is beyond compare when it is mounted at the front of the tractor during ploughing (spires offset).
In both spring and autumn, its work precedes the ploughing process and saves going over the ground twice. Its benefit is beyond compare when it is mounted at the front of the tractor during ploughing (spires offset).
In both spring and autumn, its work precedes the ploughing process and saves going over the ground twice. It enables earth clods to be broken-up before they become too hard and conserves moisture in the soil whilst re-closing the ploughing on the surface.
The SYNCHROLAB makes a contribution to a perfect use of the tractor’s power and to a balancing of the attached unit.
Visibility remains important in the transport position combined with optimal manoeuvrability.

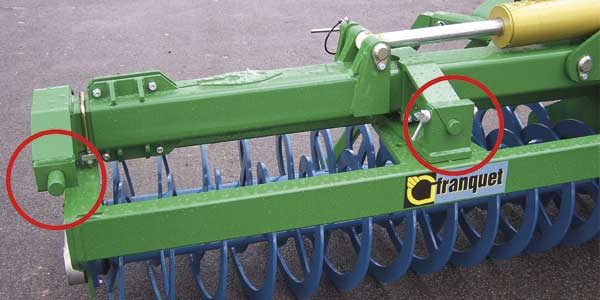

This sturdy and ingenious system enables the spires to be disengaged in the central position and to engage them in the off-centre position, easily and quickly.
Central position (shown above) : the SYNCHROLAB is a front-mounted combination in front of a seeding unit. Offcentre position: ideal when breaking-up the ploughing. The economy of one pass for post-ploughing tillage!
Synchrolab data sheet
| SYNCHROLAB | Fixed | |||
|---|---|---|---|---|
| Working width (m) | 2 x 1,5 m | 2 x 2 m | 2 x 2,5 m | 2 x 3 m |
| Type of plough 14 inch | 3 to 4 furrow | 5 furrow | 6 to 7 furrow | 8 furrow |
| Type of plough 16 inch | 3 furrow | 4 to 5 furrow | 6 furrow | 7 furrow |
| Transport width (m) | 2,65 m | 2,65 m | 2,65 m | 2,65 m |
| Transport height (m) | 1,65 | 2,15 | 2,65 | 3,15 |
| Weight (kg) | 1 560 | 1 820 | 2 080 | 2 340 |
| Type of spires | Synchrospire, 2 x 500 mm diameter spires, profile 60 x 12, step of 160 mm |
|||
| Hydraulic valve | 1 | |||
| Power requirement | Depending on the plough, type of soil and conditions Starting from 2 to 4 furrow ploughs |
|||
| Lighting / signalling devices | yes | |||
Our materials are available in other sizes, please consult.
